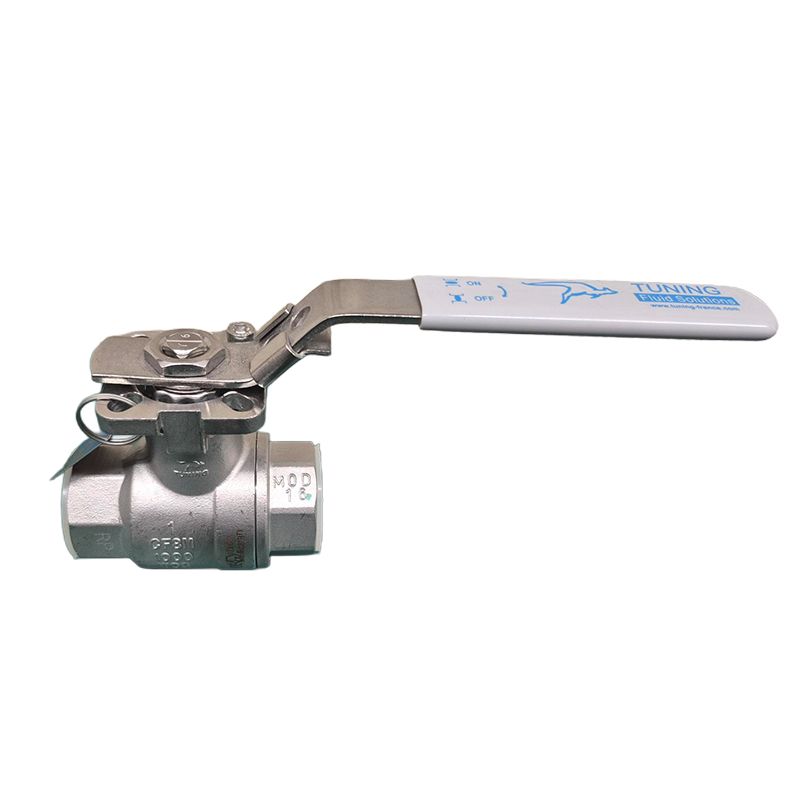

Tuning 200925 2Piece Direct Mount Ball Valve
Price range: £32.00 through £146.00
Tuning 200925 2Piece Direct Mount Ball Valve.
Threaded ISO 7/1 ball valve, full bore, AISI 316, TFM 1600 seats, FKM seal, ISO 5211 mounting pad for actuation, ATEX rated, -29°C to 175°C.
Product Description
Tuning 200925 2Piece Direct Mount Ball Valve
- Threaded ISO 7/1 or NPT
- 1000 PSI
- Body, ball and shaft AISI 316
- TFM 1600 seats
- Full bore
- FKM seal
- Direct ISO 5211 pad
- DIN shaft
- ATEX II2 G/D CT3
- Temperature – 29 °C / + 175 °C
More Info
| Ball Valve Size | ½", ¾", 1", 1¼", 1½", 2" |
|---|
