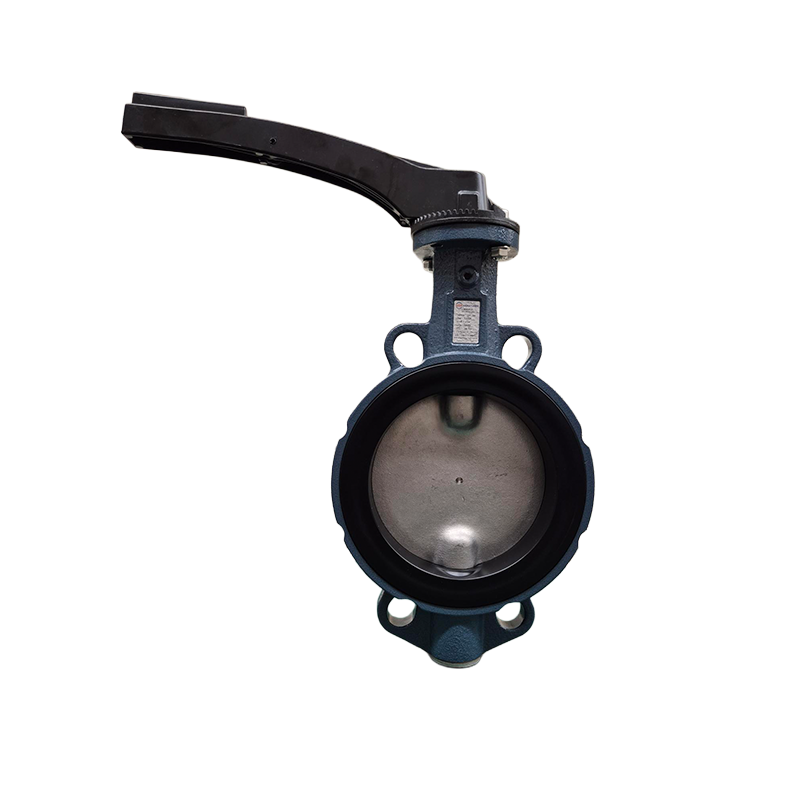

Ebro Wafer Pattern Butterfly Valve
Price range: £52.00 through £600.00
Ebro Wafer pattern butterfly valve, manufactured acc. to EN 593. Size Range from: 2″ – 12″ (Bareshaft or with handle). Triple shaft bearings prevent shaft deflection and guarantee optimum guidance even after many years of operational service
Product Description
Ebro Wafer pattern butterfly valve, type Z011-A Universal pattern, (BS 4504 PN10/16/ANSI Class 150). A resilient seated wafer type butterfly valve, available with or without handle; Manufactured to EN 593. Suitable for use in various applications.
Chemical and petrochemical industries, Water and wastewater technology, Pneumatic materials handling technology, Shipbuilding, Power generation industry (EN 14432) – Size Range from: 2″ – 12″ (Bare Shaft)
FEATURES
– Absolutely tight sealing with flow in either direction, – The valve body and disc are accurately machined which results in low operating torque and long service life and reliability
– Triple shaft bearings prevent shaft deflection and guarantee optimum guidance even after many years of operational service
– Four flange mounting holes ensure correct valve location when installing – Can be installed in any desired position
– Maintenance-free – Can be disassemble, material-specific recycling possible
– For paint and lacquers, a silicon-free version is available
More Info
| Ebro Handle | With Handle, Without Handle |
|---|---|
| Ebro Wafer Size | 1½", 2", 2½", 3", 4", 5", 6", 8", 10", 12" |
